Scissor Clamp BSV Multi 760/50Z
1-800-416-9792
(No reviews yet)
Write a Review

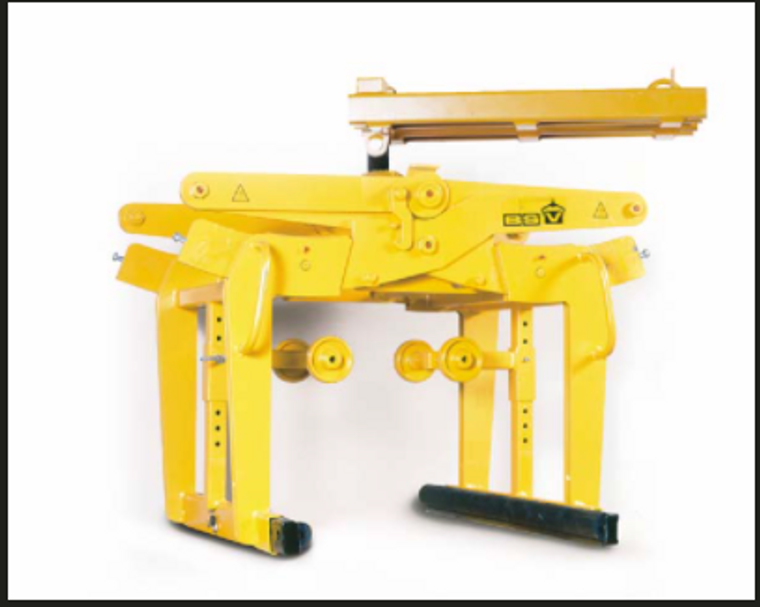

Scissor Clamp BSV Multi 760/50Z
Our clamps are made by BSV in Denmark. They have been making clamps for 110 years and your operators will fight for the truck that's equipped with the BSV.
All clamps protect the product with rubber contact pads for safe and easy loading and offloading. All clamps are gravity controlled – they open when rested and close when lifted.
We can supply custom clamp solutions if you require a clamp or grab not shown. Many other sizes and configurations are available by special order. Be sure to describe your needs to your salesman as not all clamps are suitable for fork-truck use.
The width of this clamp can be adjusted from 15.75″ to 42″. A maximum safe working load of 3,300 lbs, the scissor clamp is extremely versatile and ideal for heavy-duty multi-purpose use.
SPECS:
| DESCRIPTION | SHIPPING WEIGHT | ADJUSTABLE |
|---|---|---|
| BSV MULTI 760/50Z (DENMARK) |
660 lbs. | Height/Span |
| HEIGHT/SPAN CAPABILITIES | OVERALL DIMENSIONS | SAFE LIFTING LOAD |
|---|---|---|
| H [7″–20″] S [15.75″–42.13″] |
50″ x 47″ x 45″ | 3300 lbs. |
YOKE FOR BSV MULTI 760/50Z
For those occasions that you need to use the fork lift.
| Shipping Weight | 100 lbs. |
| Safe Lifting Load | 3300 lbs. |
REPLACEMENT PADS
The BSV Multi 760/50 has modular, section rubber pads for easy and inexpensive replacement.
