TR200-1215-Dual-tap Transformer with Built-in Digital Astro Timer

1-800-416-9792

(No reviews yet)
Current Stock:

TR200


Includes Built-in Digital Astro Timer and terminal blocks using lever-nuts requiring NO TOOLS

Product ID: TR200-1215
Input: 120V AC 50/60Hz
Output: 12/15V AC 200VA (200W)
Construction: Stainless Steel
Weight: 14 lbs
Dimensions: 11.8 x 4.7 x 4.7” / 300 mm x 119 mm x 119 mm (height=13.4”/34cm including mounting tabs)

Illumicares multi-tap transformers are constructed of stainless steel and provide built-in protection against voltage drop, so you can install longer wire runs and more fixtures to create the perfect outdoor oasis.

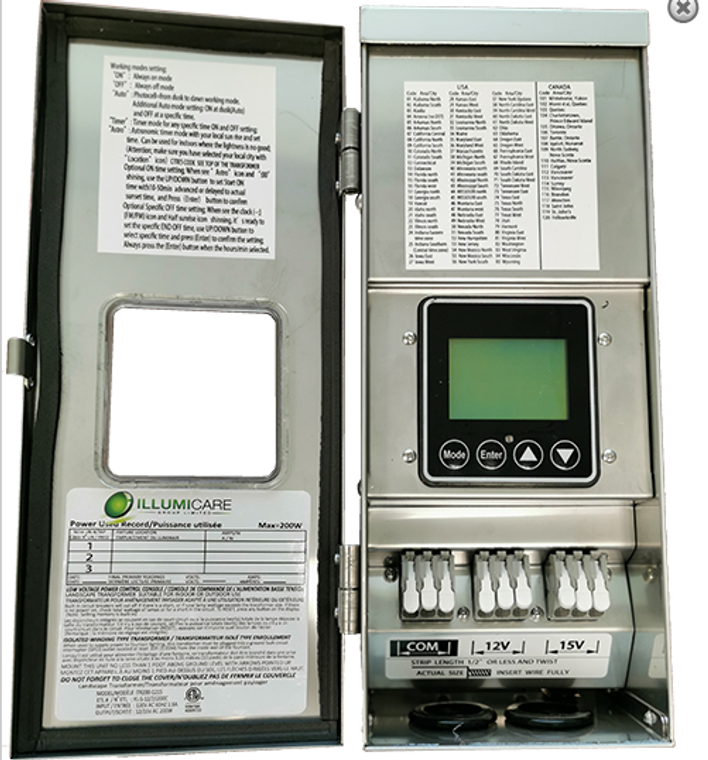

Illumicares Dual-tap Transformers include:
  • Toroidal Core Transformer
  • Extra Large Terminal Strips
  • Magnetic Circuit Breakers
  • Stainless Steel Enclosures
  • Removable, Lockable Latched Door
  • Timer and Photocell Outlets
Our solid toroidal cores ensure Illumicares transformers operate at a higher flux density than most standard multi-tap transformers.

For fast installation of secondary wire runs, each unit features removable doors, drop down bottoms in the wire compartment, and large spacious terminals to accommodate extra wire and multiple runs per circuit.

All of our models feature 120V overload protection, as well as circuit protection on the low voltage side.

The 120V accessory terminal allows you to add photocells, timers, and slave controls, as well as other hard wire accessories approved for low voltage transformer control.

LIFETIME WARRANTY
